Drippers

Mais Pipes with Built in Drippers (G.R)

Mais pipes with built in drippers are as follows:

1. Built in dripper pipes:
   • Pressure compensated
   • None pressure compensated

The system diameters & discharge rates:

Diameters & discharge rates
Nominal O.D. of pipes (mm)	W.T. (mm)	Discharge (L/H)
16	1.0	2 L/H
16	1.0	4 L/H
16	1.0	8 L/H
20	1.0	2 L/H
20	1.0	4 L/H
20	1.0	8  L/H
20 Pressure Compensated	1.0	4 L/H

O.D. = Outside diameter
W.T. = Wall thickness
L/H. = Litre per hour

Dripper performance curve:

20mm. (O.D.) dripline tubing	16 mm. (O.D.) dripline tubing

Dripper performance curve:

Recommended tubing length on level ground (Pressure range 1.0 : 2.0 Atm):

Mais trickle system:

Mais trickle system has all the advantages of Mais built-in dripper, however, the trickle system has the dripper assembled with the pipes.

Diameter & Discharg
Dia. (mm)	Discharge (L/H)
12	4 L/H
12	4 L/H
16	8 L/H



Bubblers, Emitters & Drippers

Mais adjustable flow dripper advantages.

The dripper has the following advantages:

• No complicated channels or nozzles which can be clogged.
• Simple installation.
• Easy operation.
• Efficient water distribution.

Mais adjustable dripper is ideal for flower beds, shrubs, trees & palms.

Discharge (L/H)

0 – 50

0 – 50

Mais key clip advantages:

• Accurate discharge
• Easy to assemble
• No clogging possibility

Turbulant flow
Discharge (L/H)	Water pressure
4 L/H	1 bar
8 L/H	1 bar
10 L/H	1 bar

Laminar flow
Discharge (L/H)	Water pressure
4 L/H	1 bar
8 L/H	1 bar

Bubblers:

1. Compensated type:

Discharge (GPM)

0.25

0.50

1.00

2.00

2.Non-compensated type:

Type	Discharge (L/H)
CRA	300
CRB	0 – 650
CRC	0 – 650
CRBC	0.25 , 0.5 , 1.0 , 2.0 (G.P.M)

Specification & advantages:

• Water inlet to stake 13 mm.
• Water outlet from stake to bubbler ½” outside.
• No clogging is possible because of internal filter.
• For RA & RC type bubblers adjusting water is done
  by turning the top part of the bubbler, as for RB type bubblers adjusting water is done by stainless steel screw on the top of the bubbler.

Applications:

• Landscaping, flower beds, shrubs, trees, palm, orchards

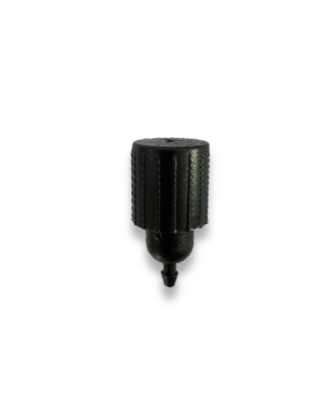

Jet sprayer:

Size

Pulzer

Shrubbler

Vari flow drippers:

Size

Pulzer

Shrubbler

Turbb key drip emitters:

1. Non-pressure compensated:
   Features:
   • Turbulent flow to resist blockage.
   • Dripperline stability provided by logs in base.
   • Clean easily due to its removable cap.
   • 4 mm. barbed inlet.

   Applications: Landscaping, orchards, vineyards, green houses, shrubs.

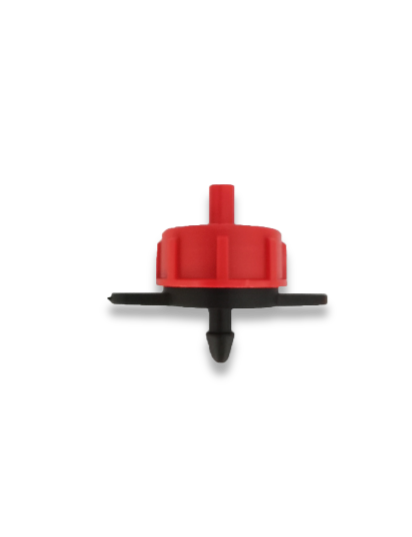

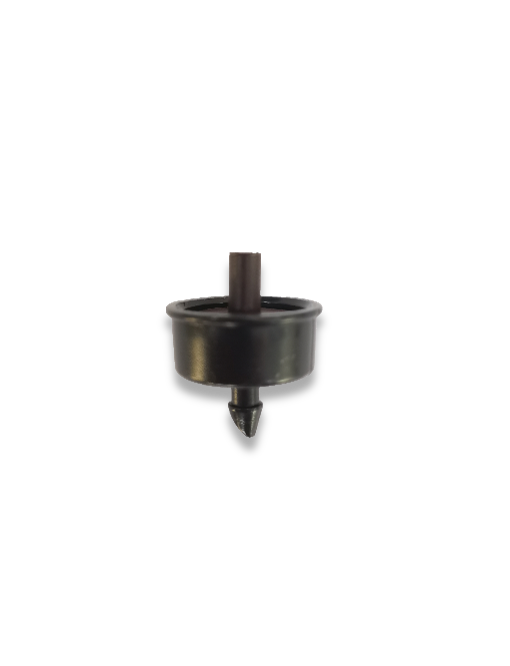

2. Pressure compensated:
   Features:
   • Pressure compensating disc to maintain flow.
   • Removable cap for cleaning.
   • 4 mm. barbed inlet.

   Applications: All the applications of the T.K. Drip Emitters plus for slopes & longer lines.

Code	Nominal discharge	Actual Discharge L/H
		Under 1.00 Bar	Under 1.50 Bar	Under 2.00 Bar
CTK 4	4L / Hr.	4.00	4.80	5.40
CTK 8	8L / Hr.	9.00	9.00	10.50
CTK P 2	2L / Hr.	2.05	2.10	2.10
CTK P 4	4L / Hr.	4.10	4.10	4.20
CTK P 8	8L / Hr.	8.20	8.20	8.30

Mais E2-Emitter:

Application:

• A laminar flow emitter with a precise and uniform flow characteristics.
• Ideal for irrigation fruit trees and vegetables.
• Easy to use in landscpae irrigation applications due to the possiblility of mounting it on a 4mm I.D spaghetti tube at its outlet.

Main Features:

• Mais dripper is a simple to use on- line emitter.
• Removable cap for easy inspection and cleaning.
• Features a lock that protects cap.
• Easy to install in the field.

Technical Features:

• Mais emitter is manufactured from a high quality Polypropylene material with a flow rate of 8L/h at 15 PSI.
• Its outlet has a 4mm OD making it easy usable with a spaghetti tube.
• Filtration required is a 120 mesh screen or disc filter.

Central pivot sprayer:

Nozzel Size (mm)

From 1.0 to 10.0
