PIPES

  • Main Line Pipes
  • Mais Main Line Pipes
  • ISO 4427 and DIN 8074
  • Mais Lateral Pipes (In-Line)
  • Mais Lateral Pipes
  • These pipes are produced according to ISO 8779 – JS1005 Standard

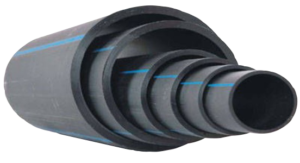

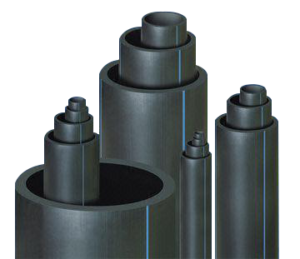

Main line Pipes

Our pipes are made from 100% premium raw virgin materials to ensure durability and efficiency. These pipe are manufacturing with different pressure range (6 bar to 20 bar),diameters and wall thickness, allowing you to select the ideal pipes to meet the demands of your irrigation system.

Features:

    • Service life up to 30 years.
    • UV and weather resistant
    • Not affected by Chemicals and fertilizers
    • With stand different temperatures
    • Characterized by cohesion and homogeneity.
    • Resistant algae growth.
    • Available in different lengths.
    • Non-toxic, non-contaminating.

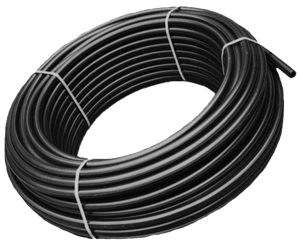

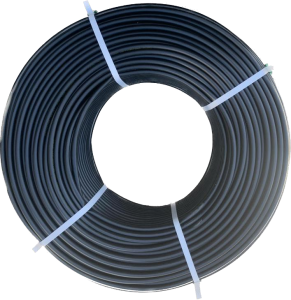

MAIS MAINLINE PIPES



Mainline Pipes
Outside diameter (mm) Pipes Length (m) Wall Thickness (0.2± mm) Operating Pressure (bar)
25 100 1.8 6
32 100 1.9 6
50 100 2.4 6
63 100 2.8 6
75 100 3.3 6
90 100 4.3 6
110 100 5.3 6
125 100 6.6 6
160 50 7.85 6
180 12 6.9 6
200 12 7.7 6
225 12 8.6 6
250 12 9.6 6

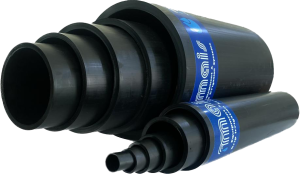

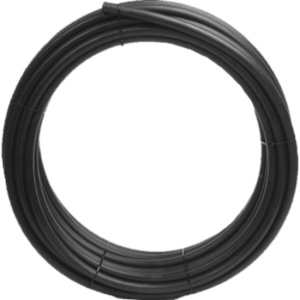

ISO 4427 and DIN 8074

These Pipes Produced According To ISO 4427And DIN 8074 Standard



Pipe series
SDR 11 SDR 13.6 SDR 17 SDR 21 SDR 26
S 5 S 6.3 S 8 S 10 S 12.5
Nominal pressure (PN) Bar
PE 63 PN 10 PN 8 PN 6.3 PN 5 PN 4
PE 80 PN 12.5 PN 10 PN 8 PN 6 PN 5
PE 100 PN 16 PN 12.5 PN 10 PN 8 PN 6
Nominal Size (mm) Wall thickness e (mm)
e min e max e min e max e min e max e min e max e min e max
25 2.3 2.7 2 2.3 1.8 2
32 3 3.4 2.4 2.8 2 2.3
50 4.6 5.2 3.7 4.2 3 3.4 2.4 2.8 2 2.3
63 5.8 6.5 4.7 5.3 3.8 4.3 3 3.4 2.5 2.9
75 6.8 7.6 5.6 6.3 4.5 5.1 3.6 4.1 2.9 3.3
90 8.2 9.2 6.7 7.5 5.4 6.1 4.3 4.9 3.5 4
110 10 11.1 8.1 9.1 6.6 7.4 5.3 6 4.2 4.8
125 11.4 12.7 9.2 10.3 7.4 8.3 6 6.7 4.8 5.4
160 14.6 16.2 11.8 13.1 9.5 10.6 7.7 8.6 6.2 7
200 18 18.4 14.8 15.2 11.7 12.1 9.6 10 7.5 7.9
225 20.3 20.7 16.7 17.1 13.2 13.6 10.8 11.2 8.4 8.8
250 22.5 22.9 18.6 19 14.6 15 12 12.4 9.4 9.8

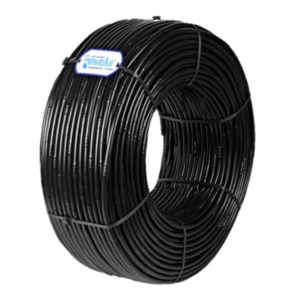

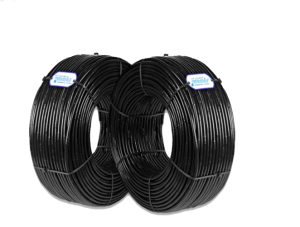

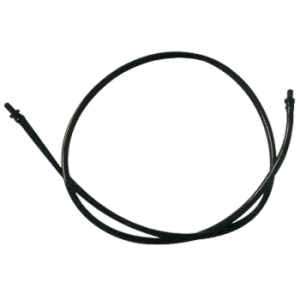

MAIS LATERAL PIPES

In –Line Pipe:

Our In –Line Pipes, whether GR, PC or Tone PC, are easy to use internes of installation, dismantling and maintenance. Their drippers design vary from round to flat systems. These pipes provide the ideal solution for farmers looking for reliable and efficient irrigation systems, helping them maintain high and reliable performance throughout the life of the system.



1- Tone PC Pipe:

  • Tone Pipe [Pressure Compensating (PC)]
  • Tone Pipe [Pressure Compensating No Drain (PCND)]

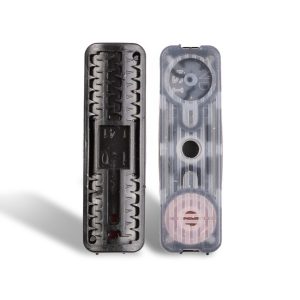

Tone PC pipes are more efficient than other types of irrigation pipes, offering innovative solutions to achieve the highest efficiency in water usage. contains a dripper with a regulator for pressure. This mechanism enables the system to deal with pressure inside the pipe ranging from 0.5 Bar up to 3.5 Bar, while maintaining the same designed flow and sufficient pressure within the irrigation system.

Their drippers are also resistant to clogging due to calcification or other factors. These pipes have several important features:

  1. Available with different flow rate 0.6 L/H 1,1.2,1.6,2 ,4 L/H .
  2. The length of the roll can reach up to 700 m
  3. Money Saving, (this product’s price is lower than its usual known price, in addition to less need to mainline pipes and fittings)
  4. Water Saving, (prevent water pooling on the soil surface, which reduces water evaporation and wastage)
  5. Adaptability to terrain: The dripper’s design allows farmers to use the tone pc pipe on sloping terrains.
  6. High Quality, (The quality of the materials used in the manufacturing of these pipes is very high and made from 100% virgin materials)
  7. Long Warranty, (long-term warranty due to the materials they are made from)
  8. Uniformity throughout the farm to increase the market value of the crop
  9. It can be used for longer distance if suitable pressure is subjected
  10. It is mostly used in the irrigation of vegetables in open fields and green houses.
  11. It is very efficient in irrigating trees that are planted close to each other, such as banana trees.
  12. The spacing between drippers starts from 20 cm and reaches up to 100 cm or more.
  13. It can be produced in a way that allocates a number of drippers to every one tree (grouping).
  14. Chemicals and fertilizers that may be added to the water do not affect the pipe.
  15. It can be easily cleaned from calcium carbonate precipitation by adding some diluted acids.
  16. The consistency of the irrigation water enhances the consistency in the size and snape of fruits; thus reflecting positively on the marketability of these fruits.
  17. Ideal for use in sloping terrain and hilly areas



  • Tone Pipe [Pressure Compensating (PC)]

Tone Pipe (Tone PC)
Pipe Type Roll Length (m) Number of Drippers Dripper Length W.T
(0.1± mm)		 Operating Pressure (bar) O.D
(0.5± mm)		 I.D
(0.5± mm)
16 mm – 50 cm – 0.6 liters PC 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 0.6 liters PC 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 0.6 liters PC 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 0.6 liters PC 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 0.6 liters PC 400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 1 liters PC 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 1 liters PC 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 1 liters PC 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 1 liters PC 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 1 liters PC 400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 1.2 liters PC 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 1.2 liters PC 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 1.2 liters PC 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 1.2 liters PC 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 1.2 liters PC 400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 1.6 liters PC 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 1.6 liters PC 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 1.6 liters PC 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 1.6 liters PC 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 1.6 liters PC 400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 2 liters PC 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 2 liters PC 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 2 liters PC 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 2 liters PC 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 2 liters PC 400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 2.4 liters PC 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 2.4 liters PC 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 2.4 liters PC 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 2.4 liters PC 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 2.4 liters PC 400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 3.8 liters PC 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 3.8 liters PC 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 3.8 liters PC 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 3.8 liters PC 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 3.8 liters PC 400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 4 liters PC 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 4 liters PC 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 4 liters PC 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 4 liters PC 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 4 liters PC 400 2000 Short 1 2.5 15 13



  • Tone Pipe [Pressure Compensating No Drain (PCND)]

Tone Pipe (Tone PC)
Pipe Type Roll Length (m) Number of Drippers Dripper Length W.T
(0.1± mm)		 Operating Pressure (bar) O.D
(0.5± mm)		 I.D
(0.5± mm)
16 mm – 50 cm – 0.6 liters  PCND 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 0.6 liters  PCND 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 0.6 liters  PCND 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 0.6 liters  PCND 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 0.6 liters  PCND 400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 1 liters  PCND 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 1 liters  PCND 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 1 liters  PCND 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 1 liters  PCND 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 1 liters  PCND 400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 1.2 liters  PCND 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 1.2 liters  PCND 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 1.2 liters  PCND 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 1.2 liters  PCND 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 1.2 liters  PCND 400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 1.6 liters  PCND 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 1.6 liters  PCND 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 1.6 liters  PCND 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 1.6 liters  PCND 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 1.6 liters  PCND 400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 2 liters  PCND 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 2 liters  PCND 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 2 liters  PCND 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 2 liters  PCND 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 2 liters  PCND  400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 2.4 liters  PCND 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 2.4 liters  PCND 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 2.4 liters  PCND 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 2.4 liters  PCND 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 2.4 liters  PCND 400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 3.8 liters  PCND 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 3.8 liters  PCND 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 3.8 liters  PCND 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 3.8 liters  PCND 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 3.8 liters  PCND  400 2000 Short 1 2.5 15 13
16 mm – 50 cm – 4 liters  PCND 400 800 Short 1 2.5 15 13
16 mm – 40 cm – 4 liters  PCND 400 1000 Short 1 2.5 15 13
16 mm – 30 cm – 4 liters  PCND 400 1333 Short 1 2.5 15 13
16 mm – 25 cm – 4 liters  PCND 400 1600 Short 1 2.5 15 13
16 mm – 20 cm – 4 liters  PCND 400 2000 Short 1 2.5 15 13

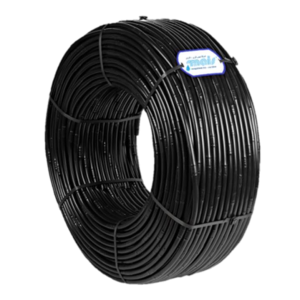

2- In –Line Pipe (GR – Non PC)

  •  GR pipe

       Features:

    1. It is mostly used in the irrigation of vegetables in open fields and green houses.
    2. It is very efficient in irrigating trees that are planted close to each other, such as banana trees.
    3. It contains a cylindrical dripper that is attached to the inside wail of the pipe pc
    4. This pipe is available in two sizes: 16 mm and 20 mm.
    5. Ideal operating pressure for this pipe is 1 Bar.
    6. It is available in different flow rates: 2 L/H, 4 L/H, and 8 L/H.
    7. The spacing between drippers starts from 20 cm and reaches up to 100 cm or more.
    8. It can be produced in a way that allocates a number of drippers to every one tree (grouping).
    9. Chemicals and fertilizers that may be added to the water do not affect the pipe.
    10. It can be easily cleaned from calcium carbonate precipitation by adding some diluted acids.



In-Line 16 mm Pipe
Pipe Type Roll Length (m) Number of Drippers Dripper Length W.T
(0.1± mm)		 Operating Pressure (bar) O.D
(0.5± mm)		 I.D
(0.5± mm)
16 mm – 50 cm – 2 liters 400 800 Long 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 40 cm – 2 liters 400 1000 Long 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 30 cm – 2 liters 400 1333 Long 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 25 cm – 2 liters 400 1600 Long 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 20 cm – 2 liters 400 2000 Long 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 50 cm – 4 liters 400 800 Long / Short 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 40 cm – 4 liters 400 1000 Long / Short 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 30 cm – 4 liters 400 1333 Long / Short 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 25 cm – 4 liters 400 1600 Long / Short 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 20 cm – 4 liters 400 2000 Long / Short 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 50 cm – 8 liters 400 800 Short 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 40 cm – 8 liters 400 1000 Short 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 30 cm – 8 liters 400 1333 Short 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 25 cm – 8 liters 400 1600 Short 0.8 – 1.2 1 15 13.4 – 12.6
16 mm – 20 cm – 8 liters 400 2000 Short 0.8 – 1.2 1 15 13.4 – 12.6



In-Line 20 mm Pipes
Pipe Type Roll Length (m) Number of Drippers Dripper Length W.T
(0.1± mm)		 Operating Pressure (bar) O.D
(0.5± mm)		 I.D
(0.5± mm)
20 mm – 40 cm – 2 liter 400 1000 Long 1 1 16.4 18.4
20 mm – 30 cm – 2 liter 400 1333 Long 1 1 16.4 18.4
20 mm – 25 cm – 2 liter 400 1600 Long 1 1 16.4 18.4
20 mm – 20 cm – 2 liter 400 2000 Long 1 1 16.4 18.4
20 mm – 40 cm – 4 liter 400 1000 Long 1 1 16.4 18.4
20 mm – 30 cm – 4 liter 400 1333 Long 1 1 16.4 18.4
20 mm – 25 cm – 4 liter 400 1600 Long 1 1 16.4 18.4
20 mm – 20 cm – 4 liter 400 2000 Long 1 1 16.4 18.4





3- In – Line 16mm Pipe [ Pressure Compensating (PC)]

 PC Pipes (In Line Pressure Compensating Dripper)

Features:

The PC Pipe contains a dripper with a regulator for pressure. This mechanism enables the system to deal with pressure inside the pipe ranging from 0.5 Bar up to 3.5 Bar, while maintaining the same designed flow and sufficient pressure within the irrigation system.

    • It is available in different flow rates: 2 L/H, 4 L/H, and 8 L/H.
    • Their drippers are also resistant to clogging due to calcification or other factors.
    • PC pipes can be used for lengths of up to 200 m, subject to the availability of suitable pressure, thus helping realize:
      1. Easy ploughing of the soil after the removal of the irrigation system.
      2. The consistency of the irrigation water enhances the consistency in the size and snape of fruits; thus reflecting positively on the marketability of these fruits.
      3. Ideal for use in sloping terrain and hilly areas
      4. The length of the roll can reach up to 400 m
      5. Money Saving, (this product’s price is lower than its usual known price, in addition to less need to mainline pipes and fittings)
      6. Water Saving, (prevent water pooling on the soil surface, which reduces water evaporation and wastage)
      7. Adaptability to terrain: The dripper’s design allows farmers to use the pc pipe on sloping terrains.
      8. High Quality, (The quality of the materials used in the manufacturing of these pipes is very high and made from 100% virgin materials)
      9. Long Warranty, (long-term warranty due to the materials they are made from)
      10. Uniformity throughout the farm to increase the market value of the crop
      11. It can be used for longer distance if suitable pressure is subjected
      12. It is mostly used in the irrigation of vegetables in open fields and green houses.
      13. It is very efficient in irrigating trees that are planted close to each other, such as banana trees.
      14. The spacing between drippers starts from 20 cm and reaches up to 100 cm or more.
      15. It can be produced in a way that allocates a number of drippers to every one tree (grouping).
      16. Chemicals and fertilizers that may be added to the water do not affect the pipe.
      17. It can be easily cleaned from calcium carbonate precipitation by adding some diluted acids.

In-Line 16 mm Pipe (PC)
Pipe Type Roll Length (m) Number of Drippers Dripper Length W.T
(0.1± mm)		 Operating Pressure (bar) O.D
(0.5± mm)		 I.D
(0.5± mm)
16 mm – 50 cm – 2 liters PC 400 800 Short 1 2.5 15 14
16 mm – 40 cm – 2 liters PC 400 1000 Short 1 2.5 15 14
16 mm – 30 cm – 2 liters PC 400 1333 Short 1 2.5 15 14
16 mm – 25 cm – 2 liters PC 400 1600 Short 1 2.5 15 14
16 mm – 20 cm – 2 liters PC 400 2000 Short 1 2.5 15 14
16 mm – 50 cm – 2 liters PCND 400 800 Short 1 2.5 15 14
16 mm – 40 cm – 2 liters PCND 400 1000 Short 1 2.5 15 14
16 mm – 30 cm – 2 liters PCND 400 1333 Short 1 2.5 15 14
16 mm – 25 cm – 2 liters PCND 400 1600 Short 1 2.5 15 14
16 mm – 20 cm – 2 liters PCND 400 2000 Short 1 2.5 15 14
16 mm – 50 cm – 4 liters PC 400 800 Short 1 2.5 15 14
16 mm – 40 cm – 4 liters PC 400 1000 Short 1 2.5 15 14
16 mm – 30 cm – 4 liters PC 400 1333 Short 1 2.5 15 14
16 mm – 25 cm – 4 liters PC 400 1600 Short 1 2.5 15 14
16 mm – 20 cm – 4 liters PC 400 2000 Short 1 2.5 15 14

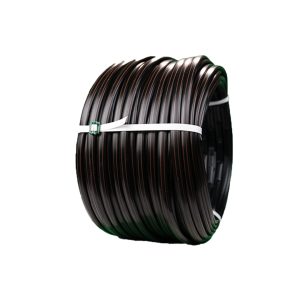

MAIS LATERAL PIPES

1- Plain 16mm Pipes

16 mm pipes
Nominal Size (mm) Roll Length Wall Thickness (0.1± mm) Operating Pressure (bar) Outside diameter (0.5± mm) In-side diameter (0.5± mm)
16 400 0.8 2 15 13.6
16 400 0.9 2.5 15 13.2
16 400 1 3 15 13
16 400 1.1 3.5 16 13.8
16 400 1.2 4 16 13.6
16 400 1.5 6 16 13
16 400 1.8 10 16 12.4

2- Plain 20mm Pipes

20 mm Pipes
Nominal Size (mm) Roll Length (m) Wall Thickness (0.1± mm) Operating Pressure (bar) Outside diameter (0.5± mm) In-side diameter (0.5± mm)
20 200 0.9 2 18.5 16.7
20 200 1 2.5 18.7 16.7
20 200 1.2 4 19 16.6
20 200 1.4 5 19.5 16.7
20 200 1.5 5 19.5 16.5
20 200 1.5 5 20.1 17.1
20 200 1.8 6 19.6 16



These pipes produced According to ISO 8779 – JS1005 standard



Nominal OD (mm)



 PE 32 PE 40 PE 63
Pipe Series
S 10 S 6.3 S 4 S 12.5 S 8 S 5 S 5
16 1.2 1.4 1.8 1 1.2 1.5 1.5
20 1.3 1.5 2.3 1.2 1.5 1.9 1.9
25 1.4 1.9 2.8 1.2 1.5 2.3 2.3
32 1.6 2.4 3.6 1.5 1.9 2.9 2.9
Nominal Operating Pressure (Bar) 2.5 4 6 2.5 4 6 10





SPECIAL SIZE PIPE

Special Size Pipe
Nominal O.D Size (mm) O.D (mm) Wall Thickness (mm) Operating Pressure (bar) In-side diameter (mm)
5.8 5.8 0.9 3 4
